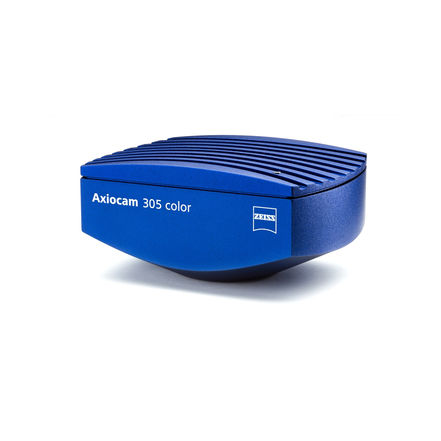

Axiocam 305 Colour

Axiocam 305 Colour for imaging 5 Megapixel images through a 2/3” CMOS Sony sensor.

Full Description

Zeiss Axiocam 305 Colour microscope camera with 2/3” CMOS based Sony sensor. For imaging up to 36fps through a USB 3.0 port. Featuring 3.45-micron pixels to produce the high resolution, high pixel count images.


128 x 128 (456 fps)

1232 x 1028 (88 fps)

2048 x 2048 (36 fps)

1920 x 1080 (67 fps)

1024 x 1024 (70 fps)

512 x 512 (136 fps)

256 x 256 (255 fps)

Interface and Connections

Axiocam 305 Colour comes with a single USB 3.0 Super Speed interface for camera control power. In a large metal casing.

Couplers and Connectors

With each camera purchase we will supply you with an adapter to fit the existing setup. Simply provide your current camera, microscope and any other information and we can supply all needed to get imaging with the new camera.

Full Specification

Sensor Model:

  • Sony IMX 264 Exmor Pregius, CMOS

Sensor Pixel Count:

  • 5 Megapixel: 2,464 (H) × 2,056 (V)

Pixel Size:

  • 3.45 μm x 3.45 μm

Sensor Size:

  • 8.5 mm x 7.1 mm; image diagonal 11.1 mm, equivalent to 2/3“ sensor format

Spectral Range:

  • Approx. 400 nm – 720 nm

  • Coated Hoya C5000 IR Cut Filter

  • RGB Bayer color filter mask

Range of Integration Time:

  • 100 μs to 4 s

Live Image:

  • 36 frames/s @ max 2,464 × 2,056 pixels

Read-out Mode:

  • Quad-Port readout

Digitization:

  • 8 and 12 Bit/ Pixel

Interfaces:

  • USB 3.0 SuperSpeed (5 Gbit/s)

Optical Interface:

  • C-Mount (17.5 mm)

Recommended Camera Adapters:

  • 0.5 ×, 0.63 ×, 1.0 ×

Size (W × H × D) / Weight:

  • 10.8 cm × 4.3 cm × 7.8 cm / 580 g

Power Supply:

  • Max. 4 W power consumption through USB 3.0-Bus from PC

Full Well Capacity (typical):

  • 10,500 e-

Readout Noise (typical):

  • 2.2 e-

Cooling:

  • Temperature stable at 25 °C for ambient temperatures between 18 °C and 30 °C

Pricing

For a price or more details please use the form below.
