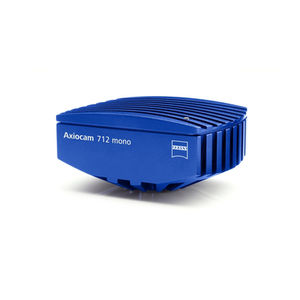

Axiocam 712 Mono

Axiocam 712 mono from Zeiss featuring a large 1.1” sensor capable of 12 mega pixel images. The highly sensitive sensor produces fast images with little noise.

Full Description

Zeiss Axiocam 712 mono, the highly sensitive monochrome camera. This camera boasts a high quantum efficiency for a rather low noise value, this makes the 712 mono perfect for applications requiring the highest of sensitivity. With a large format 1.1” chip this camera can achieve 100 fps.


This microscope camera can reach resolutions up to 12 megapixels, the following resolutions include:

  • 1920 x 128 (431 fps)

  • 1920 x 256 (241 fps)

  • 1024 x 1024 (66 fps)

  • 1920 x 1080 (63 fps)

  • 2048 x 1504 (46 fps)

  • 4096 x 3008 (23 fps)

Categories: Monochrome Microscope Camera,  Zeiss Microscope Cameras

Interface and Connections

Axiocam 712 mono comes with one USB 3.0 interface for camera control and capture. With one USB 2.0 port for power only. In a large metal casing, with a trigger in and trigger out connector.

Couplers and Connectors

With each camera purchase we will supply you with an adapter to fit the existing setup. Simply provide your current camera, microscope and any other information and we can supply all needed to get imaging with the new camera.

Full Specification

Sensor Type:

  • Sony CMOS image monochrome sensor, global shutter architecture

Sensor Size:

  • Image diagonal 17.5 mm, equivalent to 1.1" sensor format (14.1 mm × 10.4 mm)

Pixel Count:

  • 4096 (H) × 3008 (V) = 12 megapixel

Hardware Sensor Subsampling:

  • 2048 (H) × 1504 (V) = 3 megapixel @ full field of view

Pixel Size:

  • 3.45 μm × 3.45 μm

Bit Depth:

  • 14 bit, 12 bit, or 8 bit

Exposure Range:

  • 0.1 ms to 60 s

Gain:

  • 1×, 2×, 4×, 8×, 16×

Binning:

  • 1×1, 2×2, 3×3, 4×4, 5×5 (combined analog and digital binning)

Dark Current Signal:

  • < 0.5 e/pixel/s at sensor temperature 18 °C

Frame Rate (H × V ROI) Frame Rate (fps):

  • 4096 × 3008: 23 fps

  • 2048 × 1504: 46 fps (2×2 subsampling, full field of view)

  • 1920 × 1080: 63 fps

  • 1024 × 1024: 66 fps

  • 1920 × 256: 241 fps

  • 1920 × 128: 431 fps

Dynamic Range (Read Noise (gain) Full Well Dynamic Range):

  • 2.20 e (1×): 11,000 e 1:5,000

  • 1.74 e (2×): 5,000 e 1:3,100

  • 1.48 e (4×): 2,700 e 1:1,800

  • 1.29 e (8×): 1,300 e 1:1,300

  • 1.15 e (16×): 690 e 1:600

High Dynamic Range (HDR) Mode:

  • Extended dynamic range 1:25,000

Cooling System:

  • Active thermoelectric cooling, regulated sensor temperature 18 °C

Spectral Sensitivity:

  • Approx. 350 nm – 1000 nm, protection glass (coated)

Interfaces:

  • USB 3.0 (data & power) and USB 2.0 (power only)

Trigger Ports:

  • Trigger-in, trigger-out, status readout

Power Supply:

  • From PC through USB connections, max. power consumption: 7 W

Operating System:

  • Windows 10 Pro / Ultimate

Software:

  • ZEN 3.1 (blue edition) or newer, ZEN core 2.7 or newer

Image Enhancement Functions:

  • Denoise, unsharp mask, shading correction, dark current compensation, blemish removal

Automatic Features:

  • Automatic exposure time optimization

Optical/Mechanical Interface:

  • C-Mount

Dimensions and Weight:

  • 10.8 cm × 7.8 cm × 4.3 cm (2.3" × 3.2" × 1.7"), 580 g

Pricing

For a price or more details please use the form below.
