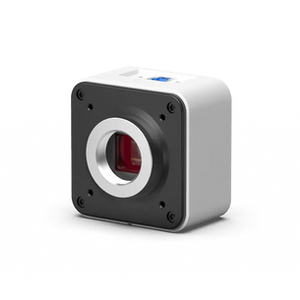

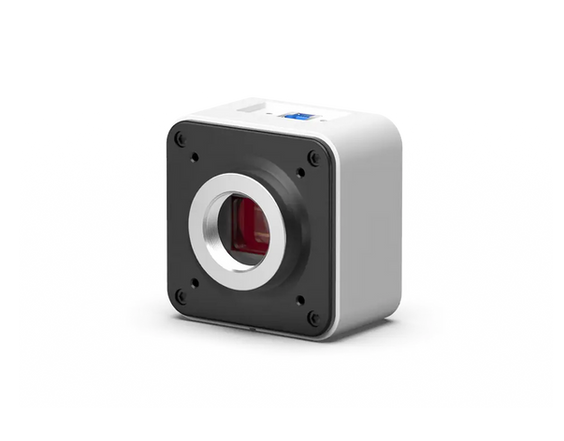

MIchrome 20

Economical imaging up to 20 megapixels with a 1” colour sensor.

Prices from £790.00 (Contact for Quote)

Camera Name	Colour	Mega Pixel	Pixel Width (Microns)	Pixel Height (Microns)	Sensor Size	Manufacturer
MIchrome 20	16 Bit Colour	20	2.4	2.4	1	Tucsen

Camera Description

Model:MIchrome 20
Sensor Type:CMOS
Sensor Model:SONY IMX183CQJ-J
Color/Mono:Color
Array Diagonal:15.86mm
Resolution:20MP, 5472(H) x 3648(V)
Pixel Size:2.4μm x 2.4μm
Effective Area:13.1mm x 8.8mm
Shutter Mode:Rolling
Frame Rate:15fps@5472x3648
Exposure Time:18μs-15s
Binning:2x2, 3x3, 4x4
Color Temperature:2000-15000K
PC Software:Mosaic V2
Picture Format:TIFF/JPG/PNG/DICOM
Multiple Cameras:Supports 4 Cameras Simultaneously in SDK
SDK:C/C++, C#, Directshow/Twain
Optical Interface:Standard C Mount
Bit Depth:16/8bit
Camera Size:68mmx68mmx46mm
Camera Weight:327g
Data Interface:USB3.0
Power:3W
Operating Environment:Temperature：-10~45℃; Humidity: 10%~85%
Operating System:Windows 7/10 (32 Bit/64 Bit)/Mac
PC Configuration:CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more

Want to know more about this camera model, ask for a quote or get questions answered. Contact us and we can help answer all your questions.
