Axiocam 807 Colour

Zeiss Axiocam 807 Colour, features a fast 1.1” 7 megapixel sensor capable of producing 73 fps at full resolution. Due to the fast response of chip images can be captured in low light scenarios.

Full Description

Axiocam 807 colour camera for fast 7-megapixel colour imaging at full resolution. Featuring up to 73 fps and an ultra-fast ramp up time to temperature, giving stable and reproducible results. With a large 1.1” CMOS sensor and pixel sizes of 4.5 microns images can be captured in low light scenarios.


The Axiocam 807 camera can reach resolutions up to 7 megapixels, the following resolutions include:


  • 1920 x 120 (506 fps)

  • 1920 x 256 (487 fps)

  • 512 x 512 (282 fps)

  • 1024 x 1024 (152 fps)

  • 1920 x 1080 (145 fps)

  • 1602 x 1104 (260 fps)

  • 3216 x 2208 (73 fps)

Categories: Colour Microscope Camera,  Zeiss Microscope Cameras, Fluorescence Microscope Camera

Interface and Connections

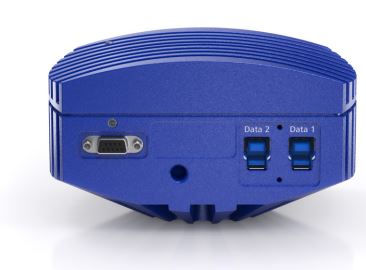

Axiocam 807 colour comes with dual USB 3.0 interfaces for camera control and capture. In a large metal casing, with a trigger in and trigger out connector.

Couplers and Connectors

With each camera purchase we will supply you with an adapter to fit the existing setup. Simply provide your current camera, microscope and any other information and we can supply all needed to get imaging with the new camera.

Full Specification

Sensor:

  • Type: Sony CMOS image color sensor

  • Architecture: Global shutter

  • Size: 1.1" Sensor Format, Image Diagonal: 17.6 mm, Image Field: 14.5 mm × 9.9 mm

  • Pixel Count: 3216 (H) × 2208 (V) = 7.1 Megapixel

  • HW Subsampling: 2 × (1608 H) × (1104 V) = 1.8 Megapixel (high-speed full-view mode)

  • Pixel Size: 4.5 μm × 4.5 μm

  • Bit Depth: 14 bit / 12 bit or 8 bit per pixel

Exposure:

  • Range: 0.1 ms up to 60 s

Gain:

  • Options: 1×, 2×, 4×, 8×, 16×

Binning:

  • Options: 1×1, 2×2, 3×3, 4×4, 5×5 (combined analog and digital binning)

Dark Current Signal:

  • 0.3e-/p/s at 25 °C sensor temperature

HDR:

  • Reduced readout noise at Gain 1× for the best combination of sensitivity and high intensity levels in one frame

Cooling System:

  • Active cooling, regulated sensor temperature: 25 °C

Spectral Sensitivity:

  • Range: Approx. 400 nm – 720 nm

  • IR Filter: Coated

Interfaces:

  • Dual USB 3.0

  • Trigger Port: Connector for trigger cable (Trigger-in, trigger-out, ready)

Power Supply:

  • By USB 3.0 connections

  • Power Consumption: 7 W max.

Operating System Compatibility:

  • Windows 10 x64 Enterprise

Software:

  • ZEN 3.6 (Blue Edition) and higher

  • ZEN Core 3.5 and higher

Image Enhancement Functions:

  • Denoising, sharpening, shading correction, dark current compensation

Automatic Feature:

  • Optional automatic exposure time adaption

Optical Interface:

  • C-Mount

Dimensions and Weight:

  • Dimensions: 10.8 cm × 7.8 cm × 6.1 cm

  • Weight: 580 g

Pricing

For a price or more details please use the form below.
