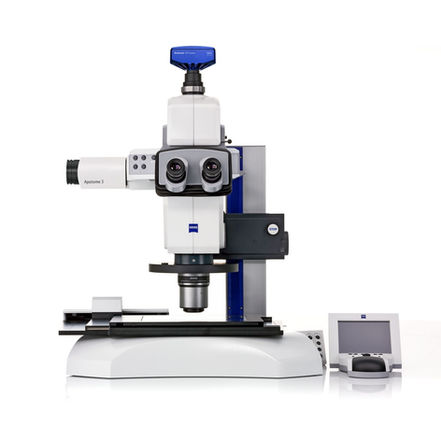

Axio Zoom V.16

ZEISS Axio Zoom V16 fluorescence zoom microscope for observation as well as reflected light over large fields of view. The Axio Zoom allows for a zoom range up to 16x, this allows for a balance of sample size to magnification from larger objects at lower magnifications to smaller objects at higher magnifications.

V16 is ideal for materials applications such as inspection of circuity, batteries, components and other materials. It is also ideal for biology applications such as whole embryo slide imaging, mouse brains, drosophila and more in reflected (fluorescence) or transmitted light.

• Zoom microscope for large fields from 0.6 to 46mm

• Ideal for fluorescence microscopy applications with reflected light

• Ideal for industry with reflected light and transmitted light options

• Varying levels of XY and Z automation

Key Specifications for the Axio Zoom V16

Axio Zoom V16 zoom microscopes are modular and can be fitted with a variety of add-ons and extras, please get in touch for more information.

• Variable zoom – Manual zoom for up to 16x zoom ratio for object fields from 0.6mm-46mm (objective dependent).

• Manual focus control – Coarse, fine focus manual stands for ease of focus even at larger magnification

Options and Extras for the Axio Zoom V16

• Motorized focus – Easy to use motorized focus for precise control of the stands focus positioning

• Transmitted light – transmitted light illumination built into the stand base

• XY Stages – Mechanical or gliding stages with the option for motorization with a variety of inserts

• Objectives – A range of objectives for a balance of resolution and magnification, swappable via a 2 position turret if required

  • PlanApo Z 0.5x/0.125 FWD 114mm

  • Plan Neofluar Z 1.0x/0.25 FWD 56mm

  • PlanApo Z 1.0x/0.25 FWD 60mm

  • Apo Z 1.5x/0.37 FWD 30mm

  • PlanNeoflaur Z 2.3x/0.57 FWD 10.6mm

• Reflected light – Use a reflected light turret with ZEISS filter sets

• Apotome 3 – Increase resolution and decrease fluorescence e light scattering with the apotome 3 structured illumination setup

• Microscope cameras – Combine the Axio Zoom V16 with a microscope camera for documentation in real time of fluorescence, bright-field and material applications with attachments for C-mount cameras

• Slit rings and fibres – Reflected light via a CL 9000 or CL 6000 LED for dissection and analysis

Exploded Diagrams for the Axio Zoom V16
